Henghui Steel have been committed to providing the world with higher quality and lower price Chinese steel.

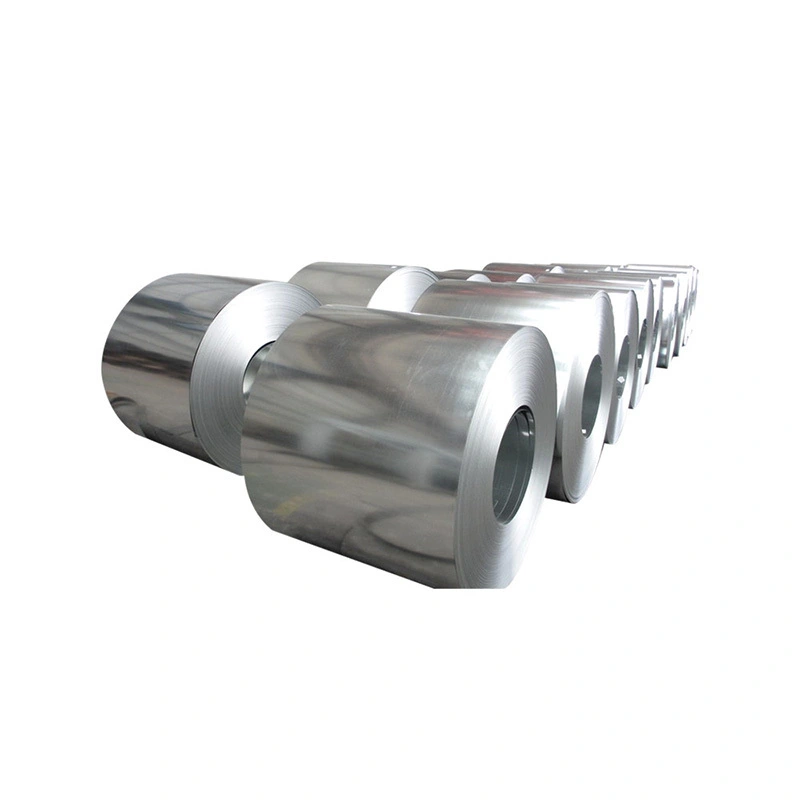

Galvanized steel strip 0.2*1200mm, building materials, zinc layer 60-120g export quality 1

Galvanized steel strip 0.2*1200mm, building materials, zinc layer 60-120g export quality 2

Galvanized steel strip 0.2*1200mm, building materials, zinc layer 60-120g export quality 3

Galvanized steel strip 0.2*1200mm, building materials, zinc layer 60-120g export quality 4

Galvanized steel strip 0.2*1200mm, building materials, zinc layer 60-120g export quality 5

Galvanized steel strip 0.2*1200mm, building materials, zinc layer 60-120g export quality 6

Galvanized steel strip 0.2*1200mm, building materials, zinc layer 60-120g export quality 7

Galvanized steel strip 0.2*1200mm, building materials, zinc layer 60-120g export quality

Thickness:

0.11mm-0.8mm-6.0mm

Width:

25mm-1500mm

Place of Origin:

TianJin, China

Minimum order quantity:

28 tons

Color:

Silver

Material grade:

Q195,Q215,Q235,DX51D

Packing:

Conventional Marine packing

Delivery time:

20-25days

Shipping term:

FOB/CIF/CFR

Transaction mode:

T/T,LC

Inquiry

Write a Review

product description

Galvanized strip steel is cold-rolled or hot-rolled, long and narrow steel plates coated with a layer of raw materials called (zinc) to varying degrees. Hot dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.

Complex physical and chemical reactions occur between the hot dip galvanized strip steel base and the molten bath to form a tight zinc-iron alloy layer with corrosion resistance. The alloy layer is integrated with the pure zinc layer and the strip steel matrix. Therefore, its corrosion resistance is strong.




Technology

The first stage

The whole roll of strip steel is pickled and decontaminated to achieve a bright and clean surface.

The third stage

The galvanized strip plate is put into storage, and the galvanized layer can be according to customer needs, generally not less than 50g/ square meter, of which any sample shall not be less than 48g/ square meter.

The second stage

① Hot dipping zinc: After pickling, it is cleaned by ammonium chloride or zinc chloride aqueous solution or ammonium chloride and zinc chloride mixed aqueous solution tank. Then feed into the hot dip plating tank for galvanizing.

② Hot dip galvanizing: After pickling, it is cleaned in the tank of ammonium chloride or zinc chloride aqueous solution or mixed aqueous solution of ammonium chloride and zinc chloride, and is sent into the galvanizing tank after continuous annealing furnace.

③ Straight galvanizing: After pickling, it is sent into the continuous annealing furnace and into the galvanizing tank for galvanizing.

The post-treatment of galvanized strip steel includes three aspects, passivation, pre-phosphating and oiling. First of all, the galvanized strip steel should be passivated, which can improve the surface structure and luster of the galvanized layer, improve the corrosion resistance and service life of the galvanized layer, and improve the binding force of the coating and the base metal. The passivation treatment is mainly chromate passivation.

Some activators, such as fluoride, phosphoric acid or sulfuric acid, are added to the passivation solution to obtain a thicker chromate film after passivation. When there is fluoride in the passivation liquid, the surface tension of the steel strip can be reduced, the film formation reaction can be accelerated, and the chemical polishing effect can be increased to make the passivation film fine and bright.

The application effect of galvanized strip steel is in line with modern needs, and it has been widely used as a building material. Galvanized strip steel has the characteristics of no rust and corrosion resistance for many years, it can be not affected by the external adverse environment, and always maintain its own performance and appearance.

In the process of using galvanized strip steel, in order to improve its operation efficiency and its own characteristics, galvanized strip steel products can be post-treated to make its performance better.

Product Application

Galvanized strip steel is generally used to make steel pipes, such as: greenhouse pipes, drinking pipes, heating pipes, gas transmission pipes; It can also be used in construction, light industry, automobile, agriculture, animal husbandry, fishery and commercial industries. The construction industry is mainly used for the manufacture of anti-corrosion industrial and civil building roof panels, roof grilles, etc.

The light industry uses it to manufacture household appliance shells, civil chimneys, kitchen utensils, etc., and the automotive industry is mainly used to manufacture corrosion-resistant parts of cars. Agriculture, animal husbandry and fisheries are mainly used as food storage and transportation, meat and aquatic products frozen processing equipment; Commercial mainly used as materials storage and transportation, packaging tools; Steel structure sandalwood bar (C,Z steel); Light steel keel, ceiling keel, etc.

IMG20210401145202 (2)

IMG20210401145358 (2)

IMG20210401145409 (2)

FAQ

Are you a factory or trading company?

We are a factory.

Where is your factory located? How can I visit there?

We locate in Tianjin, China, 30 minutes from Beijing by train.

Can I get some samples?

Yes, free samples can be provided

What do your factory do regarding quality control?

From material to products, we inspect each process to keep good quality.

How about MOQ?

We have stock of common sizes at hand, so one ton is accepted.

How about payment?

Both T/T and L/C can be accepted.

How long does your warranty?

We can assure the quality within 90 days of receiving the cargo.
