Ringlock Scaffolding introduction

Disc scaffold is a new type of scaffold, the product was introduced from Europe in the 1980s, is an upgrade product after the bowl buckle scaffold. Also known as chrysanthemum scaffold system, disc scaffold system, wheel scaffold system, buckle scaffold,layher frame (layer frame, Rea frame, because the basic principle of the scaffold is invented by the German LAYHER (Rea) company, also known as the "Rea frame" in the industry.

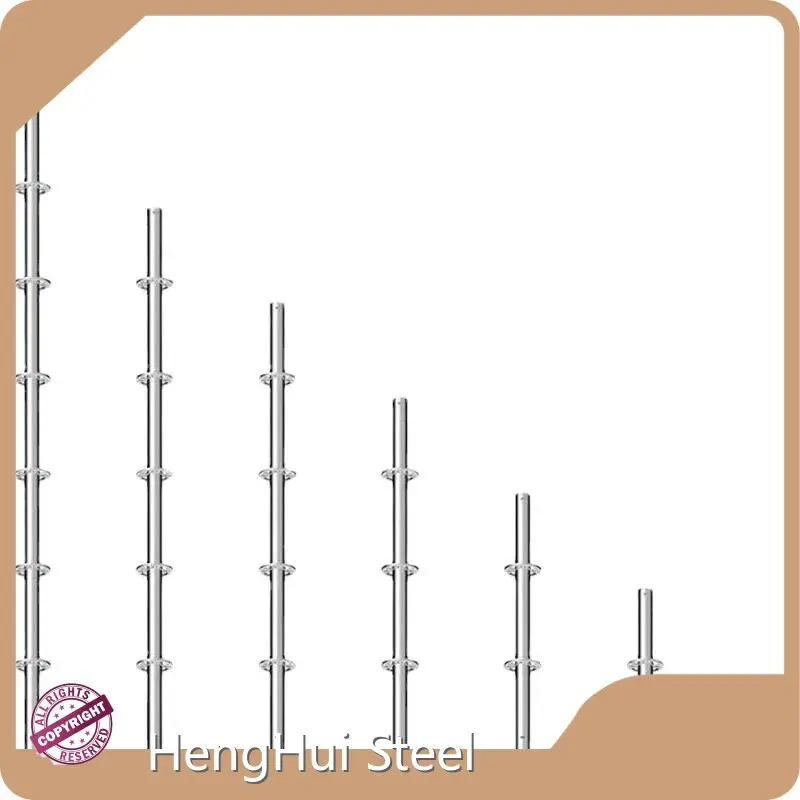

Mainly used for large concert lighting stand, background stand. The disc type multi-functional scaffold is an upgraded product after the bowl buckle type scaffold. The socket of this scaffold is a disc with a diameter of 133mm and a thickness of 10mm, on which 8 holes are opened. The main component is φ48*3.5mm and Q345B steel pipe. The vertical pole is welded on a disc every 0.60m on the steel pipe of a certain length. A cross bar is made of a plug with a bolt welded to both ends of a steel pipe.

More Details

After years of experience accumulated in the industry, as well as the long-term development strategic plan formulated by the company's leaders, our company reformed the existing pre-galvanized pipe production line in 2015. Through the modification of the passivation liquid formula and the introduction of new equipment, the quality of our pre-galvanized products has been further strengthened. Thanks to this, the disc scaffold produced by our company has also become the first choice for foreign customers. More beautiful and durable

Advantages of ringlock scaffolding

1. Multi-functional.  According to the specific construction requirements, it can form a variety of single row and double row scaffolding, support frame, support column, material lifting frame and other functional construction equipment with a module of 0.6m, and can do curve layout.  The scaffold can be used with adjustable bottom support, adjustable upper support, double adjustable early removal, lifting beam, lifting frame and other accessories, and can be used with all kinds of steel pipe scaffolding to achieve various versatility.  First, it can be built on any uneven slopes and stepped foundations;  Second, it can support the stepped template, which can realize the early removal of the template;  Third, it can realize the early removal of part of the support frame, can set up the passage, pick the eaves and fly wings;  Fourthly, it can cooperate with the erection of climbing frame, movable workbench, outer shelving, etc., to achieve various functions of support;  Fifth, it can be used as storage shelves, which can be used to set up various stages, advertising engineering supports, etc.  The vertical rod has the function of arbitrary length according to the module of 600mm, and also has the function of inverted butt joint, which provides convenient conditions for the use of special height dimensions.  Multi-functional steel pipe scaffold also provides technical support for the use of large standardized formwork and the hanging, installation and fixing of new formwork.

2.  Less structure, easy to build and disassemble, basic structure and special parts, can make the system can be adapted to various structural buildings;  Only by the vertical rod, cross rod, diagonal tie rod three types of components, vertical rod, cross rod and diagonal tie rod are all made in the factory, one is to maximize the traditional scaffolding activity parts easy to lose, easy to damage the problem, reduce the construction unit's economic losses;  The second is that there is no movable locking part, which prevents the unsafe hidden dangers caused by the traditional scaffold movable locking part to the maximum extent.

3. The product has a high degree of economy, more convenient and faster to use: in use, only need to insert the two ends of the rod plug into the corresponding cone hole on the vertical rod, and then knock it tight, the rapidness and quality of the lap can not be done by traditional scaffolding.  Its dismantling speed is 4-8 times that of fastener steel pipe scaffold, and more than 2 times that of bowl buckle scaffold.  Reduce labor time and labor remuneration, reduce freight to reduce the comprehensive cost.  The joint has reasonable structure, easy operation, lightweight and simple.  The weight of the vertical rod is 6-9% less than that of a bowl buckle vertical rod of the same length.

4. Large carrying capacity.  Vertical pole axial transmission force, so that the scaffold as a whole in three-dimensional space, high structural strength, overall stability is good, the disc has a reliable axial shear resistance, and the axis of various rods are intersected at a point, the number of connecting bars is 1 times more than the bowl buckle joint, the overall stability strength is increased by 20% by the bowl buckle and scaffolding.

5. Safe and reliable.  Independent wedges interspersed with self-locking mechanism.  Due to interlocking and gravity, the bar plug cannot be removed even if the latch is not fastened.  The plug-in has a self-locking function, which can be locked or removed by pressing the latch, and the contact surface of the fastener and the pillar is large, thereby improving the bending strength of the steel pipe, and ensuring that the pillar will not be skewed when the two are combined.  The vertical cross accuracy between the vertical shaft line and the transverse shaft line of the wheel and disk multifunctional steel pipe scaffold is high, and the force property is reasonable.  Therefore, the bearing capacity is large, the overall steel is large, and the overall stability is strong.  Each vertical pole is allowed to carry 3-4 tons.  The number of inclined tie rods used is much less than that of traditional scaffolding.

6. Good comprehensive benefits.  Component series standardization, easy to transport and management.  No scattered easy to lose components, low loss, less late investment

Application scenario of ringlock scaffolding

Widely used in: general viaduct bridge engineering, tunnel engineering, plant, elevated water tower, power plant, oil refinery...  And special workshop support design, also suitable for street overpasses, span scaffolding, storage shelves, chimneys, water towers and indoor and outdoor decoration, large concert stage, background frame, stand, viewing platform, modeling frame, stair system, party stage construction, sports competition stands and other projects

Our inventory specifications
